METAL SHEET RACK HORIZONTAL
Efficient storage and handling of metal sheets in steel, aluminum, stainless steel, galvanized metal, …
![platenstelling horizontaal 1](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-27.jpg)
- - Drawers are 100% extendable outside the metal sheet rack
- - Compact and secure storage system
![platenstelling horizontaal 3](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-22.jpg)
- - The metal sheets are immediately available
- - Time saving handling, less labor time needed
![platenstelling horizontaal 2](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-5.jpg)
- - Combination with vacuum lifter, crane or fork-lift
- - Only 1 person needed for handling
Secure storage of metal sheets, aluminum sheets, stainless steel sheet
Your metal sheets are stored in a secure and compact metal sheet rack. Every sheet metal is directly accessible due to the 100% rolling out drawers. It’s the perfect storage for all metal sheet products: steel sheets, aluminum sheets , stainless steel sheets, galvanized sheets and many others. Each individual metal sheet can be transported with a crane, a jib cran, a transporter bridge or with a vacuum lifter.
Features of the horizontal metal sheet rack: storage of sheet metals
This metal sheet rack can store metal sheets up to 6 meters long. The maximum loading capacity of the roll out drawers is 3 tons per drawer. More loading capacity is possible on demand.
METAL SHEET RACK HORIZONTAL | ||||
Sheet dimensions | Type | Quantity of drawers | Height between drawers | Loading capacity of drawers |
2000 x 1000mm | HSR 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
2500 x 1250mm | HSR 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
3000 x 1500mm | HSR 300 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
4000 x 1500mm | HSR 400 - 150 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
4000 x 2000mm | HSR 400 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
6000 x 2000mm | HSR 600 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
6000 x 2500mm | HSR 600 - 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
Other dimensions and loading heights are also possible, ask about our solutions. |
Video: Horizontal storage of sheet metals
This horizontal storage of metal sheets guarantees you immediate and direct access to every drawer = every metal sheet. The drawers, which are provided with wheels, are 100% extendable outside the rack. By simply opening the doors and the desired drawer, you gain direct access to your metal sheet. It’s a compact and clear storage method for easy handling en secure working.
Choose flat drawers or profile spacers
![Platenstelling horizontaal 4](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-30.jpg)
Flat drawers for direct loading or loading with pallet
![Platenstelling horizontaal 5](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-40.jpg)
Spacers for loading with a fork-lift, without pallet
Locking of the drawer: easy and secure
![Working safely thanks to locking function](../images/Platenstelling-Horizontaal/Blokkeerfunctie/Lockingfunction-for-safety.png)
METAL SHEET RACK HORIZONTAL – HANDLING
Using the horizontal storage systems with roll-out drawers for metal sheets and other sheets
100% roll out drawers = 100% direct access to metal sheets, aluminum sheets, galvanized sheets, …
The horizontal drawers are provided with wheels and are 100 % extendable outside the rack. Every drawer and every sheet is directly accessible for transport to or from your machine. Your sheets in steel, aluminum, stainless, galvanized are always completely accessible for loading or unloading.
It’s a compact and well-arranged method for easy handling, where safety and fast handling are the key points.
![Platenstelling horizontaal handling 1](../_styles/_assets/images/platenstelling_horizontaal/thumbnails/handling1.png)
COMPACT STORAGE
Little time required for handling your metal sheets - reduces labour time significantly.
![Platenstelling horizontaal handling 2](../_styles/_assets/images/platenstelling_horizontaal/thumbnails/handling2.png)
ROLL OUT DRAWERS
Metal sheets are always accessible
![Platenstelling horizontaal handling 3](../_styles/_assets/images/platenstelling_horizontaal/thumbnails/handling3.png)
PIVOTING DOORS
Every drawer is directly accessible
![Platenstelling horizontaal handling 4](../_styles/_assets/images/platenstelling_horizontaal/thumbnails/handling4.png)
COMBINATION WITH LOADING CRANE
For optimal usage of the horizontal metal sheet rack
![Wooden pallets directly loaded into the drawers with a forklift truck](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-20.jpg)
Photo 1
![Use of a vacuum system for easy handling of your metal sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-27.jpg)
Photo 2
![Horizontal storage rack close to machine for fast transport of sheets with jib crane](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-29.jpg)
Photo 3
![Metal sheet rack horizontal for storing sheet metal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-18.jpg)
Photo 4
![Manipulation of sheets with vacuum pick up system and crane](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-5.jpg)
Photo 5
![Model for sheets of 6m for very long and heavy sheet metal or cutoffs](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-22.jpg)
Photo 6

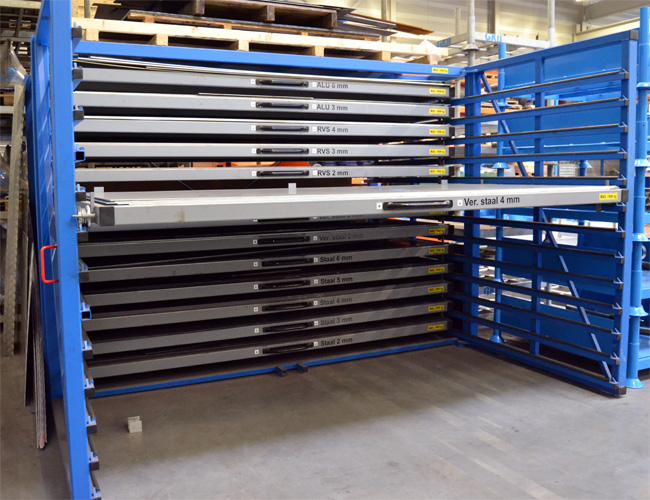

![Clear overview of sheet types per drawer](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-28.jpg)
Photo 7
![Metal sheet rack with extendable drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-03.jpg)
Photo 8
![Direct acces to sheetmetal with roll out drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-55.jpg)
Photo 9
![Direct acces to sheetmetal with roll out drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-24.jpg)
Photo 10
![Horizontal storage rack without doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-31.jpg)
Photo 11
![Horizontal storage rack without doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-32.jpg)
Photo 12
![Horizontal storage rack for metal sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-15.jpg)
Photo 13
![Clean, secure and efficient storage rack](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-19.jpg)
Photo 14
![Saving on loading area thanks to the retractable drawers and rotating doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-16.jpg)
Photo 15
![Storage system for sheets of 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-6.jpg)
Photo 16
![Model for loading sheets directly on the drawer](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-3.jpg)
Photo 17
![Drawers with spacers for loading sheets with forklift](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-4.jpg)
Photo 18
![Very compact sotrage system for aluminium, steel, ... sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-25.jpg)
Photo 19
![Handeling of metal sheets with crane](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-2.jpg)
Photo 20
![Storing sheets from 2 meters and onwards up to 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-23.jpg)
Photo 21
![Storage rack for sheet metal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-10.jpg)
Photo 22
![Storage rack for sheet metal on pallets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-21.jpg)
Photo 23
![Two-sided model for soting metal sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-26.jpg)
Photo 24
![Two sided model for loading and unloading sheet metal on seperate sided](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-11.jpg)
Photo 25
![Simplified loading and unloading process with two-sided metal sheet rack horizontal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-12.jpg)
Photo 26
![Horizontal storage of sheets 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-13.jpg)
Photo 27
![Storage cut pieces sheets in extendable drawer](../images/Platenstelling-Horizontaal/thumbnails/opslag-restplaten-hefmagneet.jpg)
Photo 28
![Vacuum system for lifting sheets](../images/Platenstelling-Horizontaal/thumbnails/horizontaal_zuignappen.jpg)
Photo 29
![Extendable drawers equipped with wheels](../images/Platenstelling-Horizontaal/thumbnails/horizontaal-wielen.jpg)
Photo 30
![Compact storage system with doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-14.jpg)
Photo 31
![Transfer sheets from storage system to machine](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-1.jpg)
Photo 32
![Compact storage system with extendable drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-17.jpg)
Photo 33
![Electrical storage rack with automated drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-elektrisch-1.jpg)
Photo 34
![Automated storage rack with electrical controls](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-elektrisch-2.jpg)
Photo 35
![Rolling out drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-7.jpg)
Photo 36
![Storage systems for horizontal and vertical storage of sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-9.jpg)
Photo 37
![Safe, efficient storing and handling of metal sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-8.jpg)
Photo 38
![Storing sheets from 2 meters and onwards up to 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-34.jpg)
Photo 39
![Storage rack for sheet metal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-35.jpg)
Photo 40
![Storage rack for sheet metal on pallets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-36.jpg)
Photo 41
![Storage rack for storing metal sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-37.jpg)
Photo 42
![Storage for loading and unloading sheet metal on seperate sided](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-38.jpg)
Photo 43
![Simplified loading and unloading process with two-sided metal sheet rack horizontal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-39.jpg)
Photo 44
![Horizontal storage of sheets 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-50.jpg)
Photo 45
![Compact storage system with doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-41.jpg)
Photo 46
![Transfer sheets from storage system to machine](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-42.jpg)
Photo 47
![Compact storage system with extendable drawers](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-43.jpg)
Photo 48
![Horizontal storage for loading and unloading sheet metal on seperate sided](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-44.jpg)
Photo 49
![Simplified loading and unloading process with two-sided metal sheet rack horizontal](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-45.jpg)
Photo 50
![Horizontal storage of sheets 6 meters](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-46.jpg)
Photo 51
![Compact storage system with doors](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-47.jpg)
Photo 52
![heavy duty metal sheet rack with crack system](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-51.jpg)
Photo 53
![high capacity sheet storage solution](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-52.jpg)
Photo 54
![Roll out drawers for metal plates and sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-53.jpg)
Photo 55
![Transfer sheets from storage system to machine](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-48.jpg)
Photo 56
![Roll out drawers for metal plates and sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-54.jpg)
Photo 57
![Roll out drawers for metal plates and sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-56.jpg)
Photo 58
![Transfer sheets from storage system to machine](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-57.jpg)
Photo 59
![Roll out drawers for metal plates and sheets](../images/Platenstelling-Horizontaal/thumbnails/platenstelling-horizontaal-58.jpg)
Photo 60
Video 1
Metal sheet rack horizontal with rotating doors Efficient transport of sheets with vacuum system.
Video 2
>Horizontal storage of sheet metal and cutoffs and handling with magnet or vacuum system. Model for sheets up to 6 m.
Video 3
Direct acces to every sheet due to the fully extendable drawers.
Video 4
Horizontal storage rack for sheets of 6 m. Safe handling with vacuum system.
Video 5
Depalletizing and storage of metal sheets with straps
Video 6
Handling of metal sheets with vacuum system
Video 7
Horizontal storage of sheets of 6 m in roll-out drawers
Video 8
Double-sided model with manually extendable drawers for sheets of 3 x 1,5 m
Video 9
Roll-out drawers equipped with levers for easy roll out of large and heavy sheets
Video 10
Double-sided system for loading with forklift and unloading with crane
Video 11
Metal sheet rack horizontal - motorised. Electronic control panel to extend the drawers automatically
Video 12
Metal sheet rack horizontal - motorised: Handling.Transport of metal sheets in and out of the horizontal rack
Video 13
Metal sheet rack horizontal - motorised: Handling
![afmetingen platenstelling horizontaal](../_styles/_assets/images/afmetingen/EUROSTORAGE_platenstellinghorizontaal_variabelen_2.jpg)
METAL SHEET RACK HORIZONTAL | ||||
Sheet dimensions | Type | Quantity of drawers | Height between drawers | Loading capacity of drawers |
2000 x 1000mm | HSR 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
2500 x 1250mm | HSR 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
3000 x 1500mm | HSR 300 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
4000 x 2000mm | HSR 400 - 150 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
4000 x 2000mm | HSR 400 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
6000 x 2000mm | HSR 600 - 200 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
6000 x 2500mm | HSR 600 - 250 | 2 - 15 drawers | 50-100-150-235 mm | 1000 - 2000 - 2500 - 3000 kg |
Other dimensions and loading heights are also possible. |
If you would like to learn more about the dimensions and prices, please contact us.
For deliveries in the UK, please visit our english website Eurostorage Systems.
